| मूक: | 1 |
| कीमत: | negotiable |
| स्टैंडर्ड पैकेजिंग: | मानक निर्यात पैकेज, या ग्राहक के अनुरोध के अनुसार |
| वितरण अवधि: | 1-30 कार्य दिवस |
| भुगतान विधि: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन |

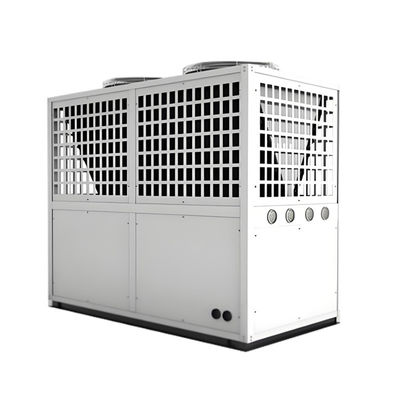

Our high temperature heat pumps are among the most efficient on the market for heating homes, buildings, or factories. Reversible air-source heat pumps are the optimal solution for sustainable cooling and heating buildings or factories. Leomon offers a full range of commercial/industrial heat pumps with temperatures up to 80°C.
Applications
* Heat recovery in hotels, food processing and pharmaceutical industries, energy supply, and data centers
* Hot water applications with strict hygienic requirements in hospitals, nursing homes, and other areas
* High-temperature hot water needs in various industrial applications
* Combining booster solutions with low-temperature heating
Heat source: water or brine
Design
* Compact, space-saving design
* Maximum source temperature between +11°C and +42°C
* Compressor overcurrent protection
* Automatic and forced defrost functions
* Anti-freeze function
* Automatic system operation even if the control panel is missing or damaged
Output Range
Heating output ranges from 30 kW to 130 kW; cascaded to 390 kW
Specifications
| Model | MG-030KFGRS | MG-030KFGRS/380 | MG-050KFGRS | MG-10KFGRS | ||
| Standard components | Cabinet/color | spray coating | ||||
| Refrigerant | R134A | |||||
| Power supply | 220V~240V/50Hz/1ph | 380V~415V/50Hz/3ph | ||||
| Compressor type | Copeland EVI compressor | |||||
| Compressor model / quantity | ZW30KSE*1 | ZW34KSE*1 | ZW61KSE*1 | ZW61KSE*2 | ||
| Condenser | high efficiency shell and tube heat exchanger | |||||
| Economy unit | plate heat exchanger | |||||
| Evaporator | blue hydrophilic aliuminium foil,wavy fin and copper tube heat exchanger | |||||
| Throttle unit | heat expansion valve | |||||
| A/C contactor | Fuji | |||||
| Thermal relay | Fuji | |||||
| Controller | Muti-function controller | |||||
| Protection function | Tempreature protection, time protection, water flow protection, antifreeze protection, current protection | |||||
| Water pressure switch | 0.015Mpa :OFF, 0.03Mpa: ON | |||||
| Low pressure switch | 0.05/0.15MPa | |||||
| High pressure switch | 3.0/3.4MPa | |||||
| Power supply line size | 2.5mm2 | 2.5mm2 | 4mm2 | 6mm2 | ||
| Package | W*D*H | 900*500*1220 | 900*500*1220 | 1150*510*1420 | 1540*820*1320 | |
| Specifications | Heating capacity(A/20ºC) | kW | 7.4 | 8.3 | 13.8 | 27.6 |
| Input power when heating | kW | 2.9 | 3.3 | 5.4 | 10.8 | |
| COP | kW/kW | 2.55 | 2.52 | 2.56 | 2.56 | |
| Rated outlet water temp | ºC | 70 | ||||
| Max outlet water temp | ºC | 80 | ||||
| Water flow | m3/H | 2.2 | 2.5 | 4.1 | 8.1 | |
| Level of protection | IPX4 | IPX4 | IPX4 | IPX4 | ||
| Electric shock proof grade | I | I | I | I | ||
| Noise | dB(A) | ≤55 | ≤55 | ≤58 | ≤66 | |
| Net weight | kg | 112 | 112 | 164 | 320 | |
| Gross weight | kg | 118 | 118 | 174 | 333 | |
| Dimension | W*D*H | 830*490*1160 | 1110*490*1260 | 1450*740*1150 | ||
| Pipe size | mm | DN25 | DN25 | DN25 | DN32 | |
| Working mode | Heating mode | |||||
| Remarks: | ||||||
| Working air temperature range:5ºC to 43ºC | ||||||
| Rated working condition: Heating: air temperature (DB/WB): 20ºC/15ºC, Initial water temperature: 15ºC, final water temperature: 70ºC or 80ºC. | ||||||
Get More Help
Please contact us for more information and a quote on our high-temperature heat pumps.
|
|
